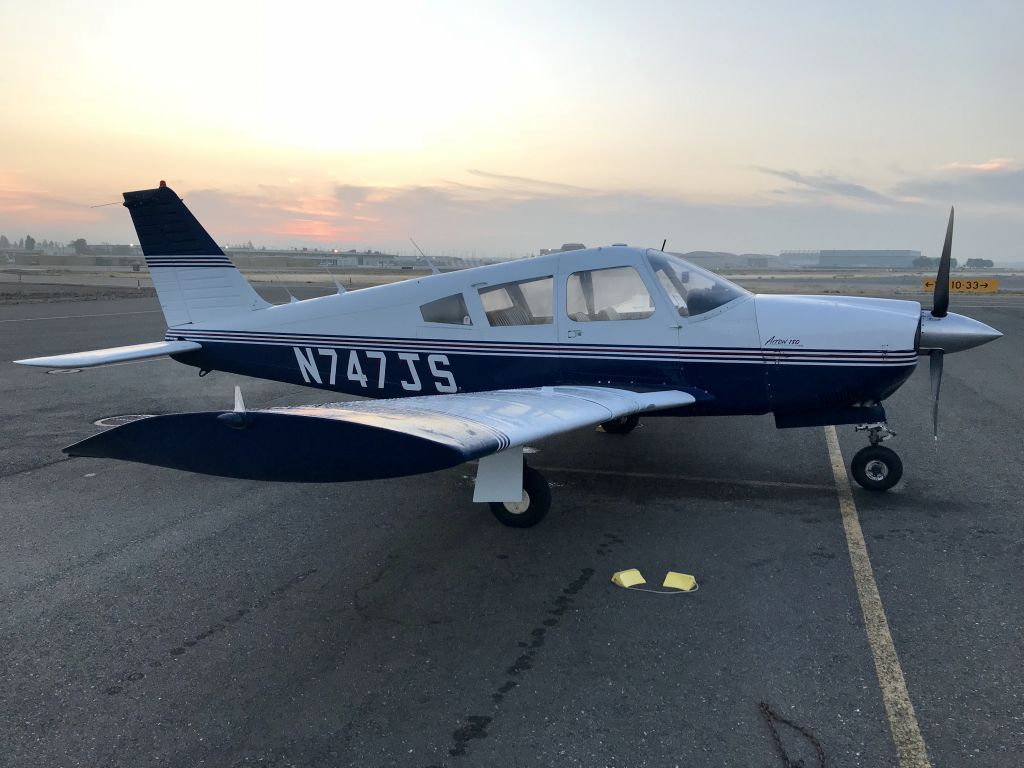

N747JS
1967 Piper Arrow I PA-28R-180
4 seats 180 hp $175/hour
Rates
- Normal rate (ACH): $175/tach-hour (Wet)
- Mid-week discount rate (ACH): $160/tach-hour (Tue-Wed-Thu same-day flights)
- Checkout rate (ACH): $135/tach-hour (while completing required checkout with Club Instructor)
Basic Information
- Model: 1967 Piper Arrow I (PA-28R-180)
- Engine: 180hp Lycoming IO-360
- Seats: 4
- Fuel Capacity: 48 gal
- Flight Rules: IFR
- Requirements: Private Pilot; 150+ hours flying time; checkout with Club Instructor; 25 hours of single engine retract time including 5 in make/model OR 10 hours of dual instruction in make/model including 15 takeoffs and landings.
Avionics
- Garmin 430W
- STEC30 Autopilot
- Engine Analyzer
- A-DSB In
Piper Arrow N747JS Emergency Procedures
Technical & Performance Data
(Quick Reference Only, Refer to POH for most up-to-date information)
Information updated/current as of 6/18/2024
Speeds (mph)
V Speeds for PA28-R
| Speed | Value (mph) |
|---|---|
| Vne | 214 |
| Vno | 170 |
| Va | 134 @ 2500 lbs |
| Vfe | 125 |
| White Arc | 63 – 125 |
| Green Arc | 69 – 170 |
Compass Deviations
For Specific Headings:
| Heading | N | 30 | 60 | E | 120 | 150 |
|---|---|---|---|---|---|---|
| Steer | N | -0 | -0 | -0 | -1 | -1 |
| Heading | S | 210 | 240 | W | 300 | 330 |
|---|---|---|---|---|---|---|
| Steer | -0 | -0 | -0 | -0 | -0 | -0 |
Other
- Fuel Capacity: 50 gallons total, 48 usable
- Oil Capacity (Total): 8 quarts
Weights
(Revised as of 9/6/13; confirmed current as of 6/18/24)
| Parameter | Value |
|---|---|
| Max Gross Weight | 2500 lbs |
| Empty Weight | 1589.50 lbs |
| Arm | 83.98 |
| Empty Moment | 133,485.97 |
| Useful Load | 910.50 lbs |
| Maximum in Baggage Compartment | 200 lbs |
| Payload with Full Fuel | 622.50 lbs |
(910.50 – 288 = 622.50)
