N8312H

Rates

• Normal rate (ACH): $160/tach-hour (Wet)
• Mid-week discount rate (ACH): $150/tach-hour (Tue-Wed-Thu same-day flights)

TBD by Board - Checkout rate (ACH): $N/A/tach-hour (while completing required checkout with Club Instructor)

Basic Information

• Model: 1982 Piper Cherokee Warrior II (PA 28A)
• Engine: 180hp Lycoming O-360A4M
• Seats: 4
• Fuel Capacity: 48 gal
• Flight Rules: IFR
• Requirements: Private Pilot; checkout with Club Instructor

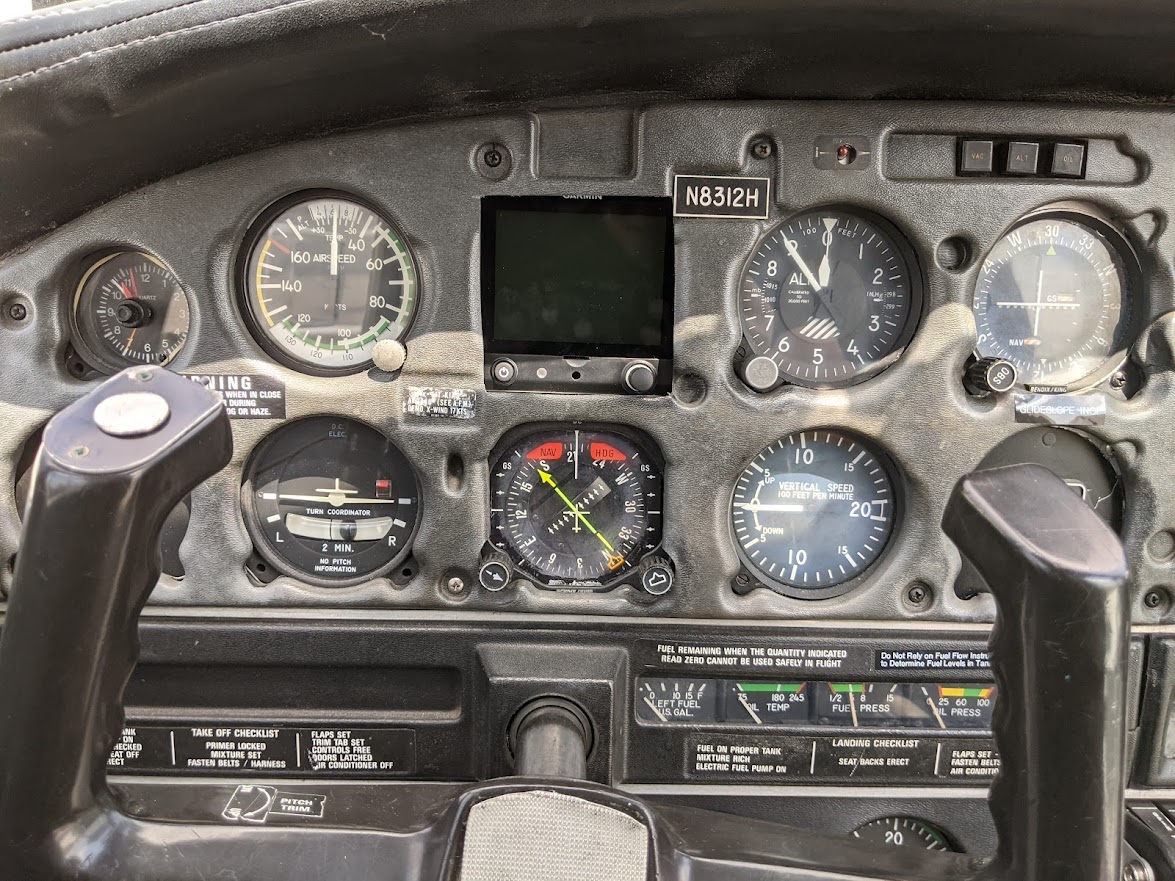

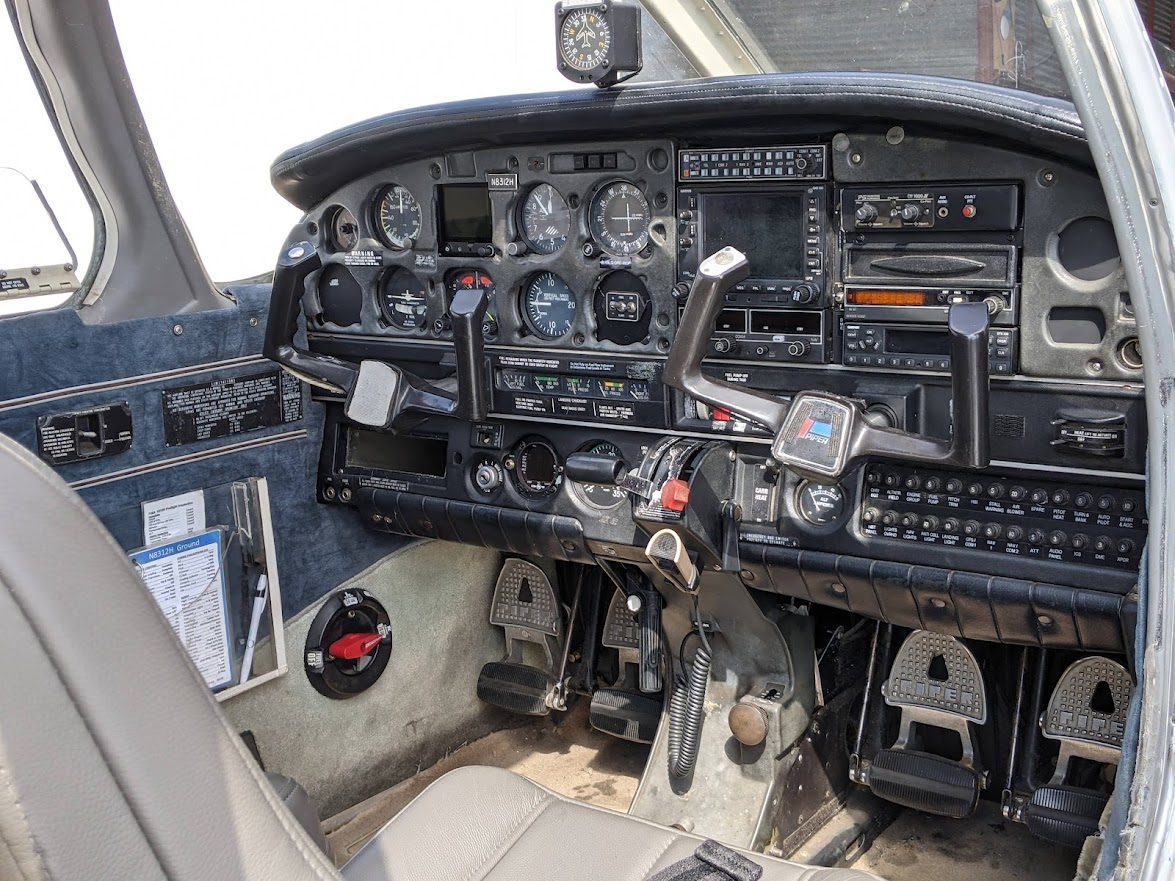

Avionics

• Dual Garmin G5 Attitude Indicator + HSI
• Avidyne IFD540 GPS
• Garmin GFC500 Autopilot
• KX155 Nav/Com

Piper Cherokee Checkout (Doc) Piper Cherokee Checkout (PDF)

Technical & Performance Data

(Quick Reference Only, Refer to POH for most up to date information)

Speeds (knots)

• Vne: 160
• Vno: 126
• Va @ 2400 lbs (max. gross): 111
• Va @ 1531 lbs: 88
• Vfe: 103
• Vs: 50
• Vso: 44
• Vx: 63
• Vy: 79
• Vg: 73
• Normal landing, full flaps: 63
• Demonstrated x-wind capability: 17

Powerplant

• 180 HP @ 2700 RPM
• Total Fuel Capacity 50 gallons, useable 48 gallons
• Tabs Total Fuel Capacity 34 gallons, useable 32 gallons

Compass Deviations

For	N	30	60	E	120	150
Steer	358	28	59	90	121	150

For	S	210	240	W	300	330
Steer	181	208	239	269	300	329

Weights

W&B last revised as of 10/6/2023; confirmed current June 2024

• Max Ramp Weight: 2447
• Max Takeoff Weight: 2440
• Max Landing Weight: 2440
• Max Baggage Weight: 200
• Basic Empty Weight: 1563.03
• Arm: 84.97
• Moment: 132805.63
• Useful Load: 876.97
